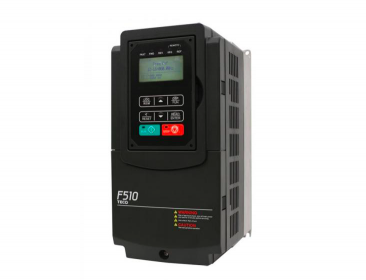

TECO inverter F510 series product features

1. Equipped with TECO’s latest high-performance current vector core control technology.

2. Simple parameter switching can drive IM, IPM and SPM motors.

3. One machine integrates six major motor control modes: V/F, V/F+PG, SV, SLV.PMSC.PMSLV*.

4. Adopt the latest 32bit MCU and ASIC dual-core control architecture.

5. Advanced rotary and static motor Auto-Tune function.

6. Built-in marked Modbus RTU communication protocol.

7. Supports the expansion of various communication modules such as Profibus-DP, DeviceNet, and Ethernet.

8. Integrate advanced software and hardware functions such as PLC, PID, and safety stop.

9. Supports copy module to copy software parameters and settings (requires LCD panel).

10. Equipped with Soft-PWM modulation technology, which effectively reduces the harsh noise of the motor at low carrier frequencies.

11. Up to 8 pumps can be controlled through an external PUMP Card.

12. Comply with international CE, UL, RoHS standards and IEC/EN61800-3 and 61800-5-1 specifications.

The F510 series is a general-purpose vector inverter that inherits TECO’s fifth-generation motor control core technology and is equipped with precise motor parameter adjustment function (Auto-tune), which can effectively improve the overall system efficiency; and its built-in constant voltage pump , exhaust fan, compressor and HVAC and other special modes, as well as Modbus/BACnet/Metasys N2 and other communication functions, can reduce installation costs, and cooperate with energy-saving control to achieve energy-saving principles and meet most application needs.

1. 220V model

    Power range: 3.7～130KW three-phase

    Input voltage: 200V～240V

2. 380V model

    Power range: 3.7V～600KW three-phase

    Input voltage: 380V～480V

3. Protection level: IP20/IP55

4. International certification: UL, CE
